Gpixel Introduces GMAX2424BSI: High-Sensitivity BSI Roling Shutter CMOS Sensor for Industrial Inspection

2026.01.07

Kanematsu Futuretech Solutions Co., Ltd. (KFT), the authorized distributor of Gpixel, announces the launch of the high-performance roling shutter CMOS image sensor GMAX2424BSI for industrial imaging applications.

This product adopts a Backside Illumination (BSI) structure to deliver superior sensitivity and image quality even under low-light conditions, meeting the demands of high-speed production lines and precision inspection.

■ Product Overview

The GMAX2424BSI is designed to address the growing need for high-speed and high-accuracy image acquisition in industrial inspection and machine vision. Compared to conventional front-side illumination sensors, the BSI architecture significantly improves quantum efficiency, ensuring stable performance in low-light environments.

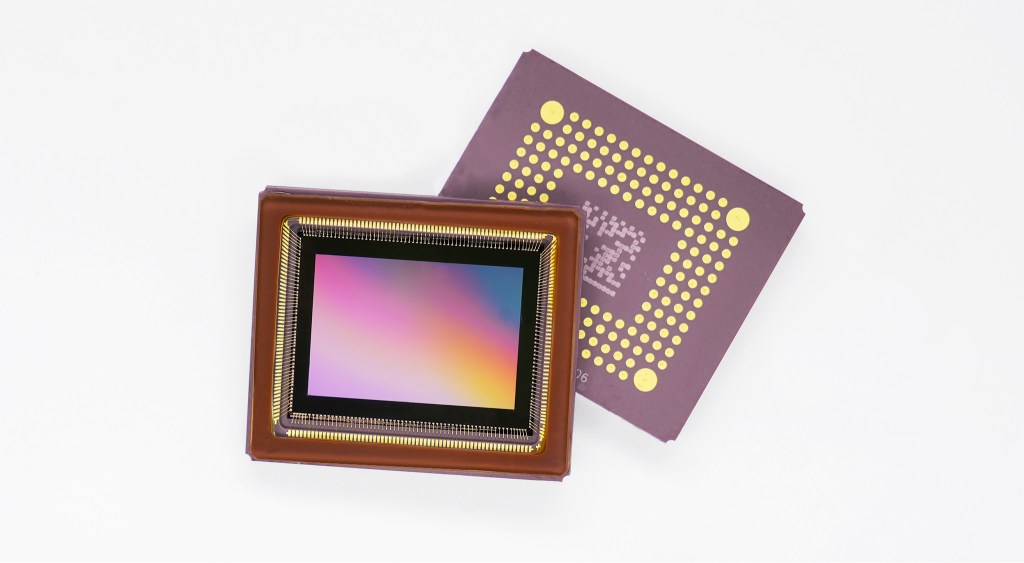

Figure 1. Product Image – GMAX2424BSI is a 1.1” 24 MP BSI image sensor with MIPI and LVDS output.

■ Key Features

Backside Illumination (BSI) structure for enhanced sensitivity
C-mount compatible 1.1″ optical format
24 MP resolution with 2.4 μm pixel size
Low readout noise and High full well capacity
High frame rate capability (up to 60 fps)
Dual ADC for high dynamic range (HDR) mode
Both LVDS and MIPI outputs for further system simplify
Robust design for long-term industrial operation

■ Main Applications

Semiconductor and electronic component inspection
Quality control on high-speed production lines
Precision robotic vision
Automotive parts inspection
Medical device manufacturing image analysis

■ Specifications

Item	Specification
Resolution	24 MP
Pixel Size	2.4 μm
Shutter Type	Rolling Shutter
Architecture	BSI
Max Frame Rate	60 fps (STD, Sub-LVDS, 10 bit) 30 fps (STD, Sub-LVDS, 12 bit) 17 fps (STD, MIPI, 10 bit)
Interface	MIPI / LVDS

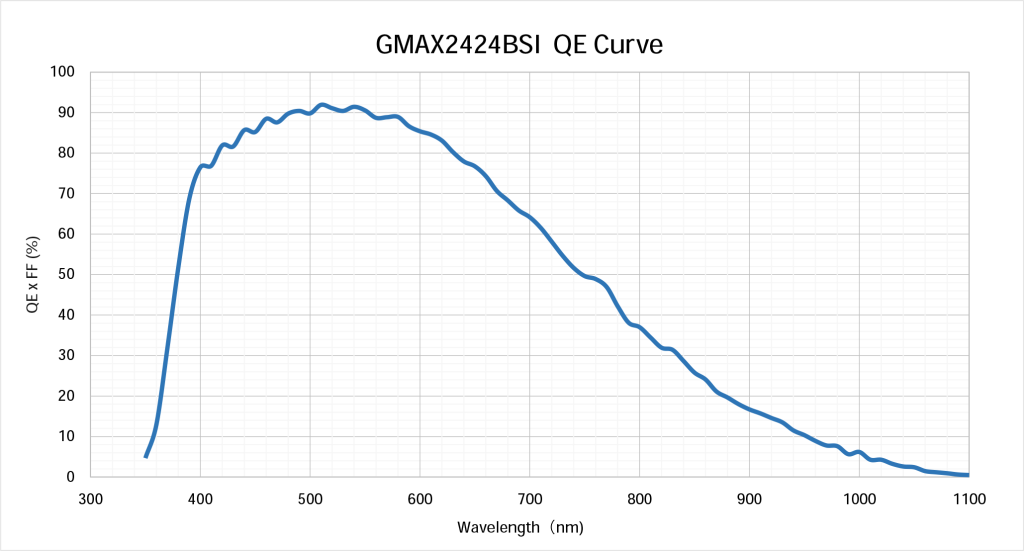

Figure 2. QE Curve – GMAX2424BSI reaches a peak QE of 92% at 510 nm and 35% QE at 800 nm.

■ Availability

Engineering samples and evaluation systems are available now.

Please feel free to contact us .

■ About the GMAX Series

The GMAX series is Gpixel’s growing family of global shutter image sensors, offering 13 unique products ranging from 2.4 MP to 152 MP resolution and pixel sizes from 2.5 μm to 4.6 μm. For a complete list of GMAX products, please visit https://www.gpixel.com.

■ About Gpixel

Gpixel provides high-performance CMOS image sensors for industrial, medical, scientific, and professional imaging applications. With a broad portfolio of cutting-edge products, Gpixel meets diverse needs in the high-end imaging market.
