Gpixel Introduces GSPRINT2001BSI: High-Speed BSI Global Shutter CMOS Sensor for Scientific and Industrial Imaging

2026.01.07

Kanematsu Futuretech Solutions Co., Ltd. (KFT), the authorized distributor of Gpixel, announces the launch of the high-performance CMOS image sensor “GSPRINT2001BSI”, designed for high-speed imaging in scientific research and industrial applications.

This sensor features a Backside Illuminated (BSI) architecture combined with global shutter technology, delivering exceptional sensitivity and image quality even under low-light conditions. With a maximum data rate of 76 Gbps and ultra-low noise performance, GSPRINT2001BSI is ideal for demanding applications such as spectroscopy and fluorescence imaging.

■ Product Overview

GSPRINT2001BSI was developed to meet the growing demand for high-speed, high-precision image acquisition in scientific and industrial inspection fields. Its BSI structure maximizes quantum efficiency, significantly improving performance under low-light conditions compared to traditional front-illuminated sensors. The global shutter eliminates motion artifacts, ensuring stable and distortion-free image capture.

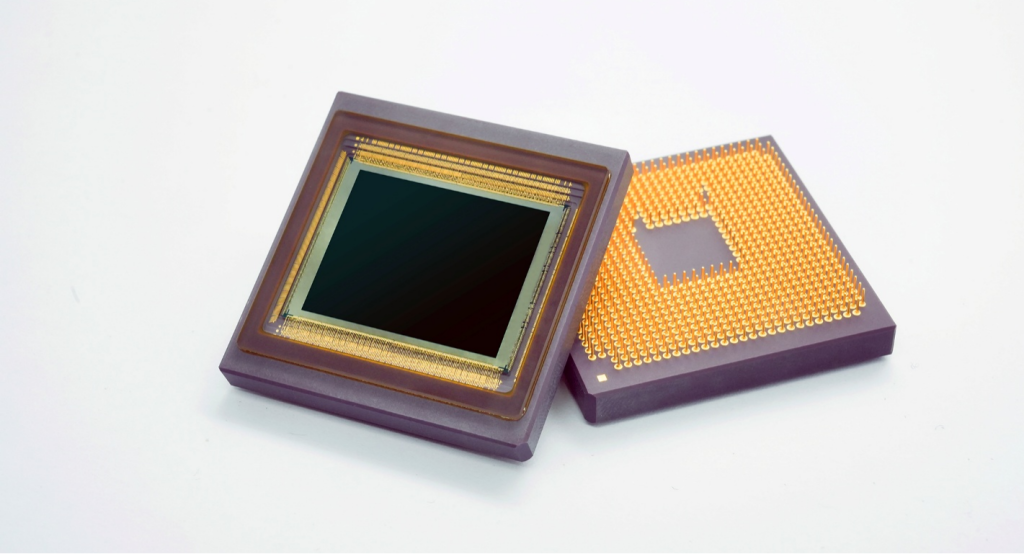

Figure 1. GSPRINT2001 packaged in a 720 pins μPGA package.

■ Key Features

Backside Illuminated (BSI) structure for enhanced sensitivity
Global shutter technology eliminates motion distortion
20 MP resolution with 2.4 μm pixel size
High QE in wide wavelength ( IVS,NIR, UV)
Subsampling and ROI support allow higher frame rates
Ultra-high data rate up to 76 Gbps
Low-noise design optimized for scientific imaging
Quartz glass to extend UV spectrum capabilities

■ Main Applications

High-speed spectroscopy systems
Fluorescence imaging instruments
Astronomical observation equipment
Medical image analysis devices
High-speed industrial inspection lines

■ Specifications

Parameter	Specification
Resolution	20 MP
Pixel Size	2.4 μm
Shutter Type	Global Shutter
Structure	BSI
Max Data Rate	76 Gbps

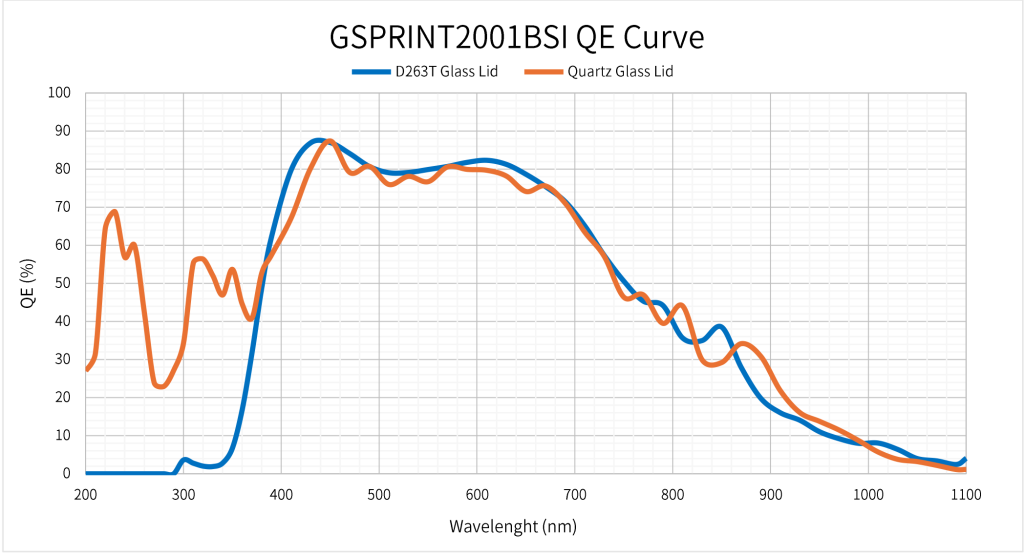

Figure 1. Quantum Efficiency curves of GPSRINT2001 with standard D263 and Quartz glass lid.

■ Availability

Samples and evaluation systems are available now.

For inquiries, please feel free to contact us .

■ About the GMAX Series

The GMAX series is Gpixel’s growing family of global shutter image sensors, offering 13 unique products ranging from 2.4 MP to 152 MP resolution and pixel sizes from 2.5 μm to 4.6 μm. For a complete list of GMAX products, please visit https://www.gpixel.com.

■ About Gpixel

Gpixel provides high-performance CMOS image sensors for industrial, medical, scientific, and professional imaging applications. With a broad portfolio of cutting-edge products, Gpixel meets diverse needs in the high-end imaging market.

Official website: https://www.gpixel.com
